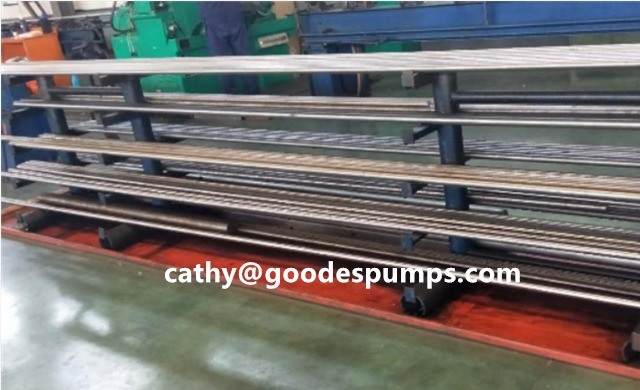

Monel K500 (UNS NO 5500) Alloy Shaft
Monel K500 (UNS NO 5500) Alloy Shaft
Contactar ahora

Monel K500 (UNS NO 5500) Alloy Shaft

Minimum Order Quantity : 1pc Packaging Details : Plywood box
Delivery Time : 15~30days Payment Terms : T/T
Place of Origin: CHINA Nombre de la marca: GARDENER

Información detallada
Material: Monel K500 (UNS NO 5500) Use: Electric submersible pump

Descripción de producto

Monel K500 (UNS NO 5500) Alloy Shaft

Characteristic:
Since the alloy is precipitated under the heat treatment condition,the γ’phase is precipitated to have hig mechanical strength and elastic modules.
High corrosion resistance in hydrogen sulfide(HS) and alkaline media.

Use:
Mainly used for submersible pump shafts and their accessories in the oil exploitation industry.
Pump shaft under ultra-low temperature(-180°C) conditions.
The stem of the nuclear industry and ships.

Mechaninical properties-Age-Hardened (Rod)

Alloy Condition Max.section Thickness. in(min) Tensile strength in(min) бb Yield strength 0.2%offset min б 0.2 Elongation δ % ≥ HRC ≥
Ksi Mpa Ksi Mpa
Inconel 718(Baton) Age-hardened All sizes 150 1034 120 827 20.0 42
Monel K500 (UNS NO 5500) (Baton) Hot-worked and age-hardened All sizes 140 965 100 690 20.0 27
Cold-worked and age-hardened All sizes 1/4 in.(6.4) to 1 in.(25.4)incl 145 1000 110 960 15.0 32
Over 1 in.(25.4)to 3 in.(76.2) incl 140 965 100 690 17.0 29
